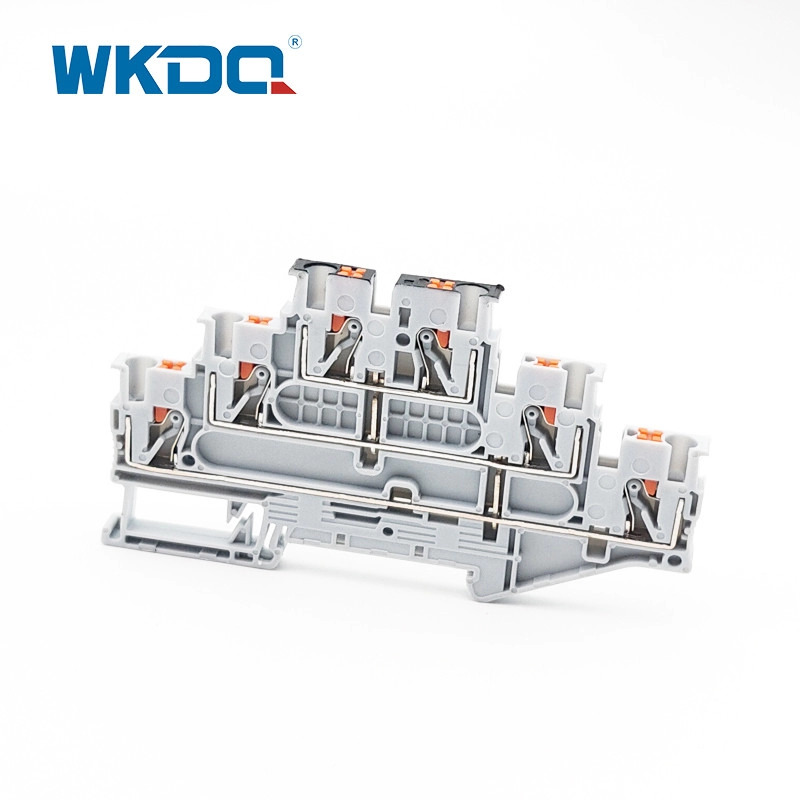

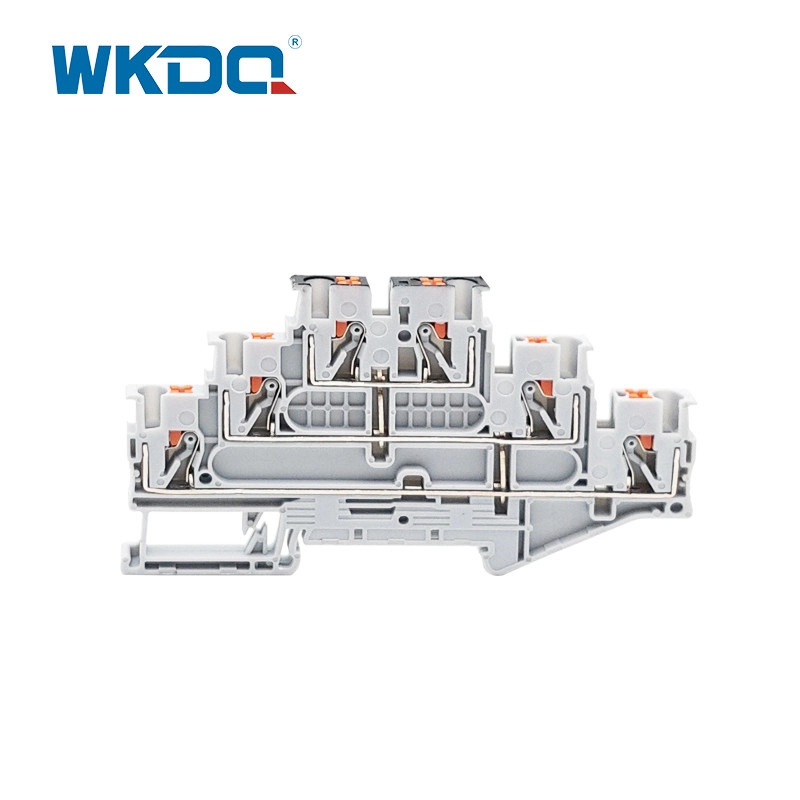

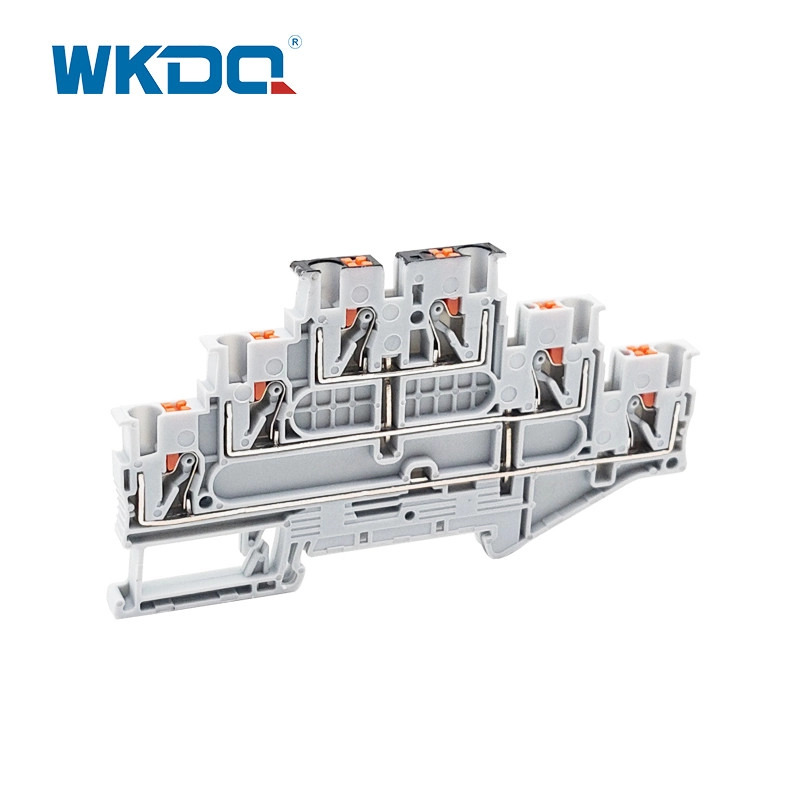

DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi
  • DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turiDIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi

DIN Rail NS 35 Push In Connection Terminal bloklari O'zaro ulanish turi

Kelib chiqqan joyi: Xitoy
Tovar nomi: WKDQ / WONKEDQ
Sertifikatlash: Idoralar / RoHS / CQC / ISO 9001
Model raqami: JPT 2.5-3L-PV
Qadoqlash tafsilotlari: quti
Yetkazib berish muddati: 2-7 kun
To'lov shartlari: T / T, Paypal, Western Union va boshqalar

So'rov yuborish

Mahsulot tavsifi

Ilg'or Push-in ulanish texnologiyasi, kiritish kuchlari 50% gacha kamayishi va asboblarsiz simlar, o'tkazgichlarni osongina va to'g'ridan-to'g'ri kiritish imkonini beradi.

l Muhandislik olovini ushlab turuvchi Nylon66 / PA66, Mis o'tkazgichdan tayyorlangan.

l Push-in ulanish klemens bloklari ferrullar yoki qattiq o'tkazgichlar bilan o'tkazgichlarni oson va asboblarsiz ulash bilan tavsiflanadi.

l Yilni dizayni va old ulanishi cheklangan joyda simlarni ulash imkonini beradi.

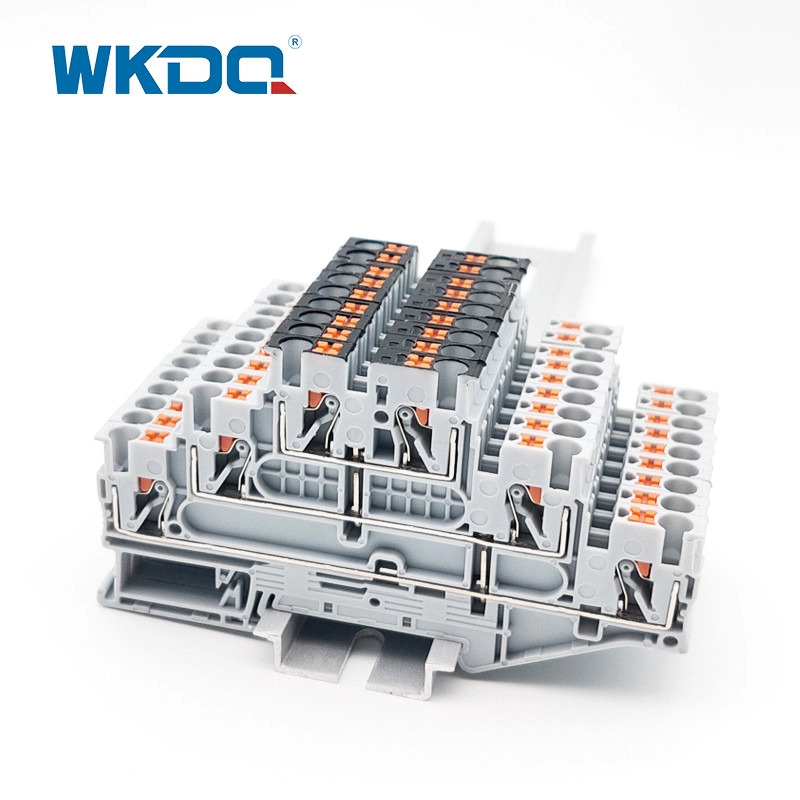

l Din Rail NS 35 ga o'rnatilishi mumkin bo'lgan universal oyoq bilan.

l Elektr potentsial taqsimoti terminal markazida sobit ko'priklardan foydalanishi mumkin.

l Ko'p o'tkazgichli terminal bloklari joyni tejash bilan birga potentsiallarni arzon narxlarda taqsimlash imkonini beradi.

l To'liq aksessuarlar: so'nggi qopqoq, so'nggi qavs, marker tasmasi, plagin ko'prigi, marker tashuvchisi va boshqalar.


TEXNIK PARAMETRELAR

Model raqami JPT2.5-3L-PV

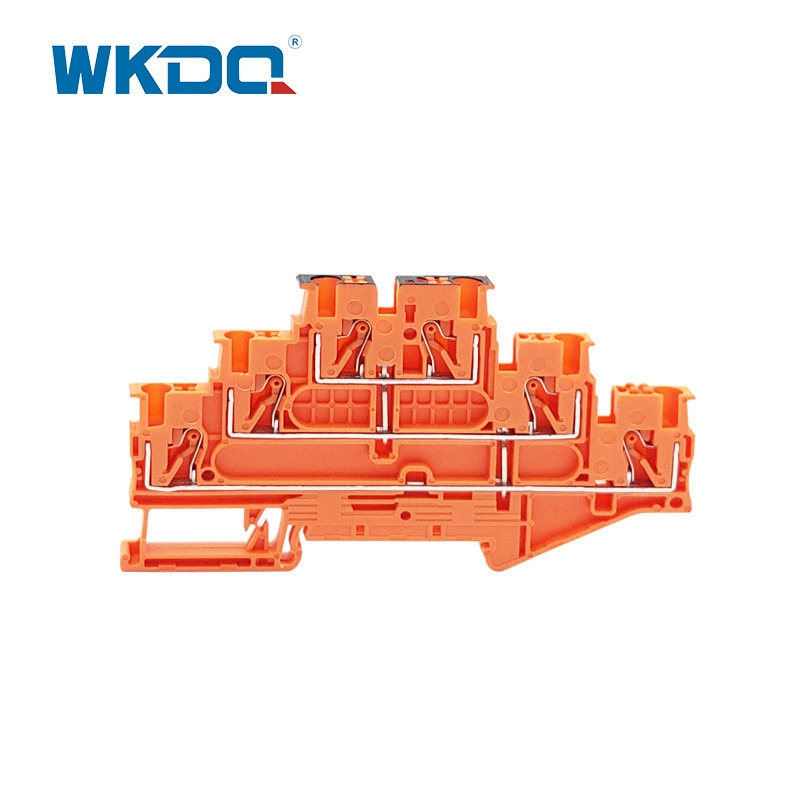

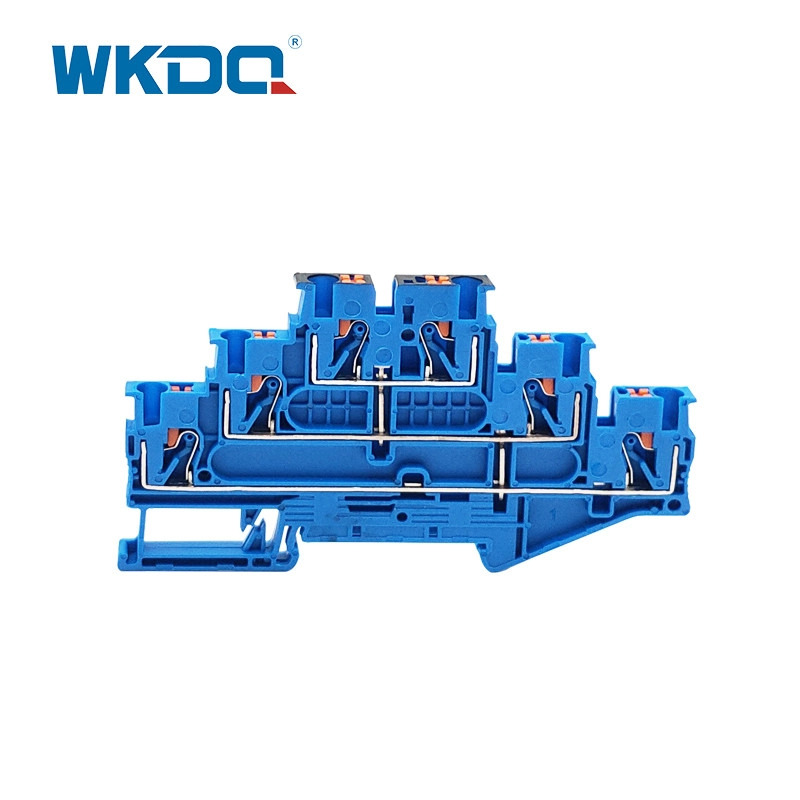

Rang Kulrang, ko'k, to'q sariq boshqa ranglarni sozlash mumkin
Uzunlik / Keng / Balandlik (mm) 103 / 56,4 / 5,2 mm
Ulanish usuli Push-in ulanish
Material Olovga chidamli neylon PA66 V0
Nominal kuchlanish/oqim 500V/22A
Ko'ndalang kesim, qattiq/yumshoq Kabel 0,14-4 mm²/0,14-2,5 mm²
Supero'tkazuvchilar hajmi 26-12AWG
O'rnatish turi DIN ray NS 35
Standart IEC 60947-7-1
LOGO WKDQ, LOGO sozlanishi mumkin
Qadoqlash detali 10,23 g / dona, 50 dona / quti
Sertifikatlash Idoralar / RoHS / CQC / ISO 9001
